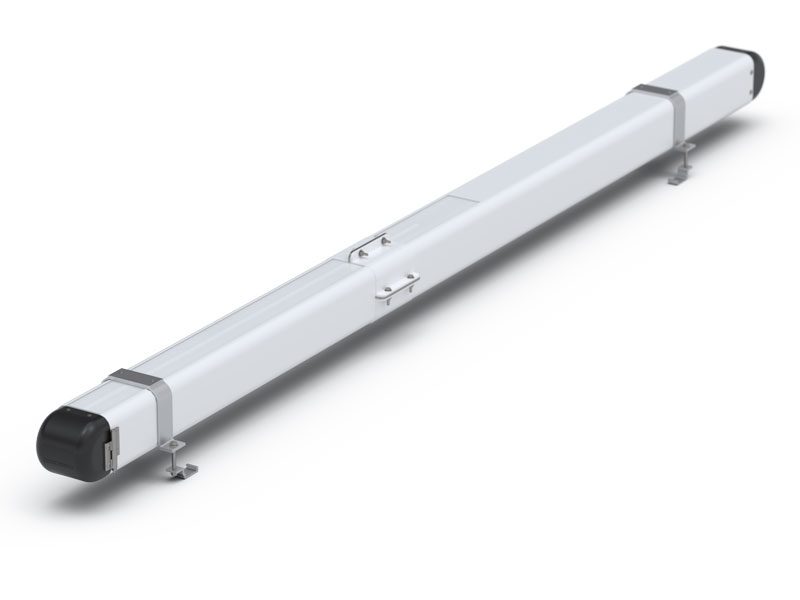

Conduit Carrier by Prime Design is compatible with any
ErgoRack or AluRack. It comes with
the mounting brackets and hardware needed. It is made of durable lightweight
powder coated aluminum. The aerodynamic design minimizes wind noise at high
speeds. It has steel reinforcement plates behind the black end caps to keep
contents safe (tested to 11gs). The 5” square design offers more storage
capacity than a standard 6” pvc pipe.
Easy to install, no drilling.
Approximate dimensions:
A: Conduit Carrier Inside Width/Height........... 5”
B: Conduit Carrier Outside Width............... 5.25”
C: Conduit Carrier Total Width........................ 8”
D: Conduit Carrier Total Length.............. 134.75”
E: Conduit Carrier Usable Length................ 128”
F: Front Conduit Splice Usable Length........... 64”
G: Rear Conduit Splice Usable Length........... 64”
H: Conduit Carrier Height............................... 5”
I: Mounting Bracket Maximum Width................8’
J: Minimum Required Space.............................9”
